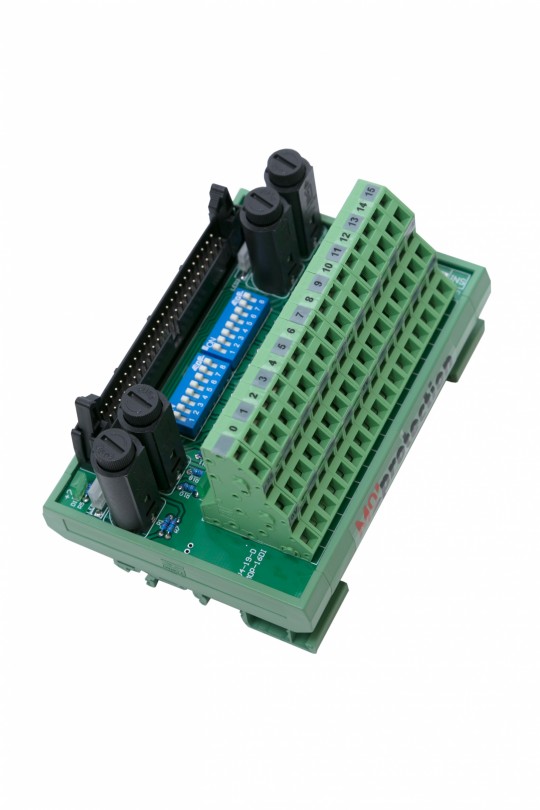

- 16 way fused 24VDC digital inputs
- Numbering systems to suit different PLCs
- Spring cage connectors
- On / Off LED indication
- Glass fuse protection (1 fuse per 4 inputs)
- LED blown fuse indication
- Input isolation DIP switches
- DIN rail mount
- Common ribbon cable configuration
Save time and cost while protecting your valuable automation investment.
Note: PLC to module wiring assembly is not included with the fuse block – order separately. Cabling comes factory assembled and tested- just plug it in, connect the field wiring and run.
This product is designed to meet Council Directive 73/23/EEC low voltage, by applying the safety requirements EN 61131-2. This equipment is classified as open equipment and must be installed (mounted) in an enclosure during operation as a means of providing safety protection
Specifications
Fuse TypeGlass 250 m/A
Fuse Group Current250mA @ 24VDC
Module Current2 Amps @ 24VDC
Voltage Range10 to 60VDC
Operating Temperature0̊ to 60̊ C
Dimensions (W x H x L)78mm x 64mm x 113mm
